Specifications
| Details |
| Model | YESIDO YC118 185W GaN Multi-Port Charging Station (EU Plug) |
| Technology & Max Power | Gallium Nitride (GaN) chip technology with 185W Maximum Total Output |
| Housing Material | PC + ABS + UV |
| Input Parameters | AC 100V-240V, 50Hz/60Hz, 2.5A (Max) |

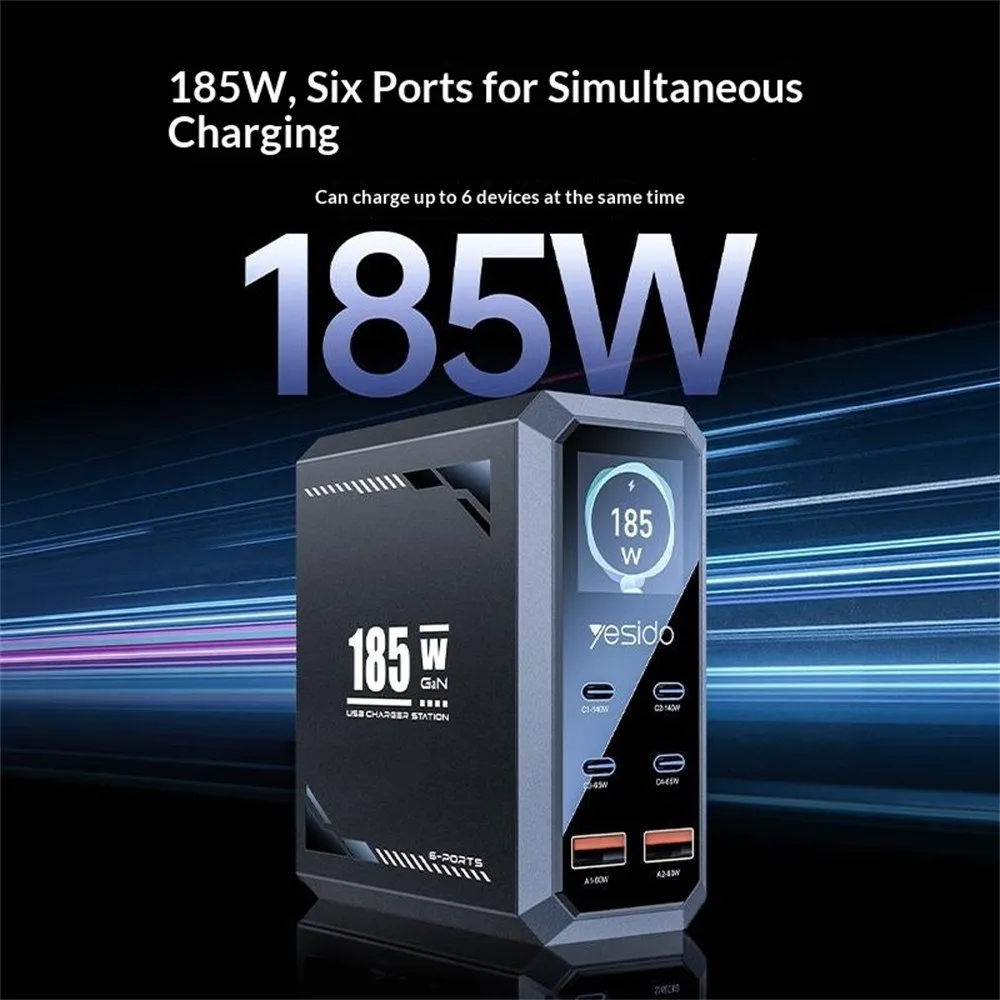

| Output Ports | 6 Ports Total: 4 x USB-C and 2 x USB-A |
| Type-C1 / C2 Output | PD3.1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A; PPS: 3.3-21V/5A, 140W (Max) |
| Type-C3 / C4 Output | PD3.1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A; PPS: 3.3-20V/3A (C3) / 5-20V/3A (C4), 65W (Max) |
| USB-A1 / A2 Output | QC3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 60W (Max) |
| Combined Outputs | • C1+C2: 100W+65W
• C3+C4: 65W+65W
• A1+A2: 15W+15W
• C1+C3+A1: 100W+65W+20W |

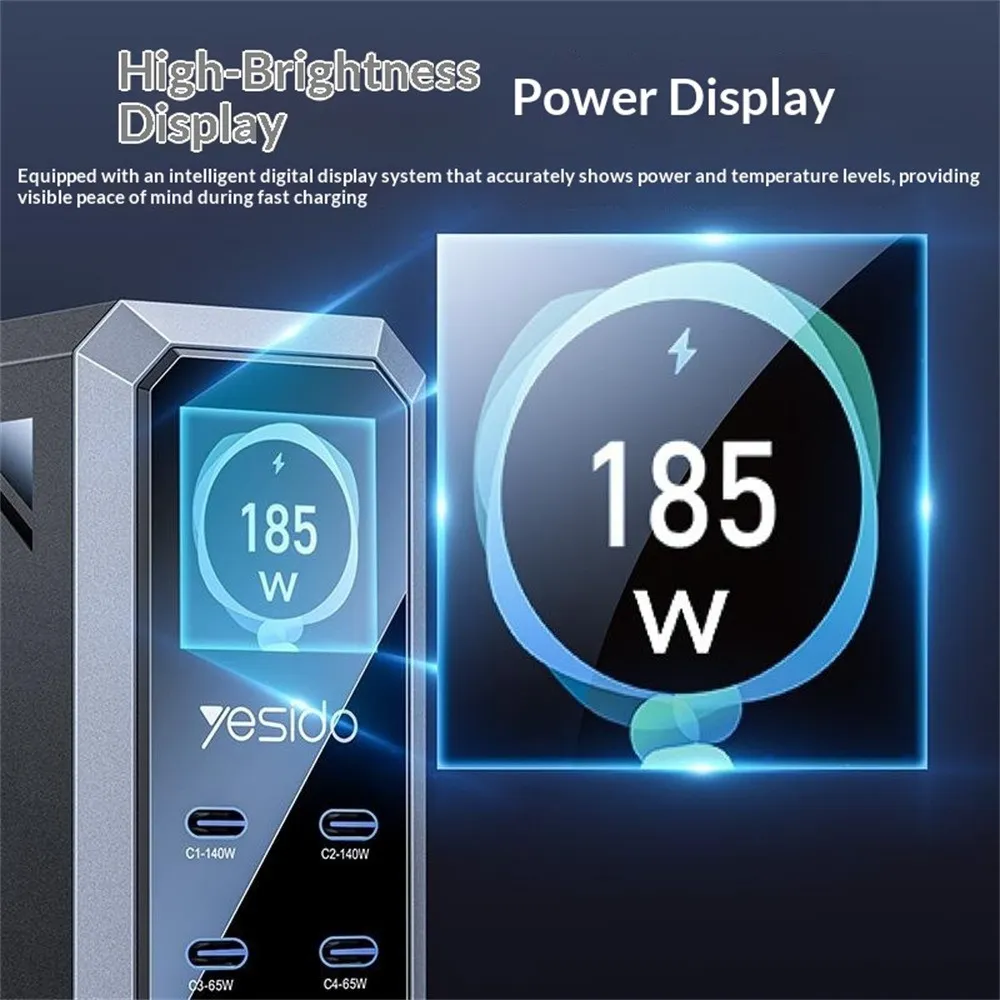

| Display & Monitoring | High-brightness digital Dynamic TFT display screen for real-time accurate monitoring of power and temperature levels |
| Fast Protocols | Supports QC2.0, QC3.0, QC4.0+, AFC, FCP, SCP, PD2.0, PD3.0, PD3.1 PPS |
| General & Package | • Cable Length: 1.2m
• Warranty: 365 days
• Gross Weight: 0.692kg
• Package Included: 1 x Charger, 1 x Power Cord, 1 x English User Manual, 1 x Base Stand |
