| Details | Model / Specs |

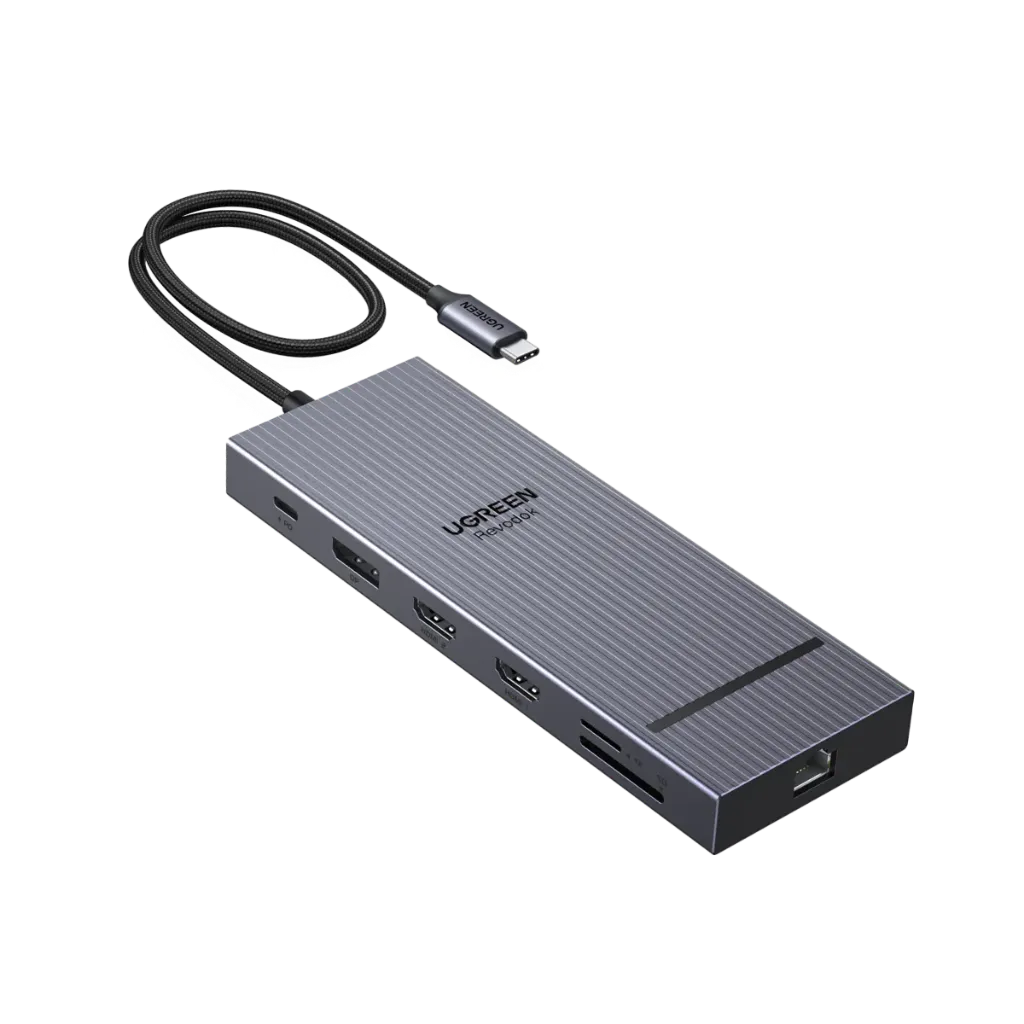

| Model | UGREEN Revodok Pro 12-in-1 Triple Display Docking Station (Model: 55767 / CM886) |
| Host Interface | USB-C (Requires host port to support DP Alt Mode or Thunderbolt 3/4) |

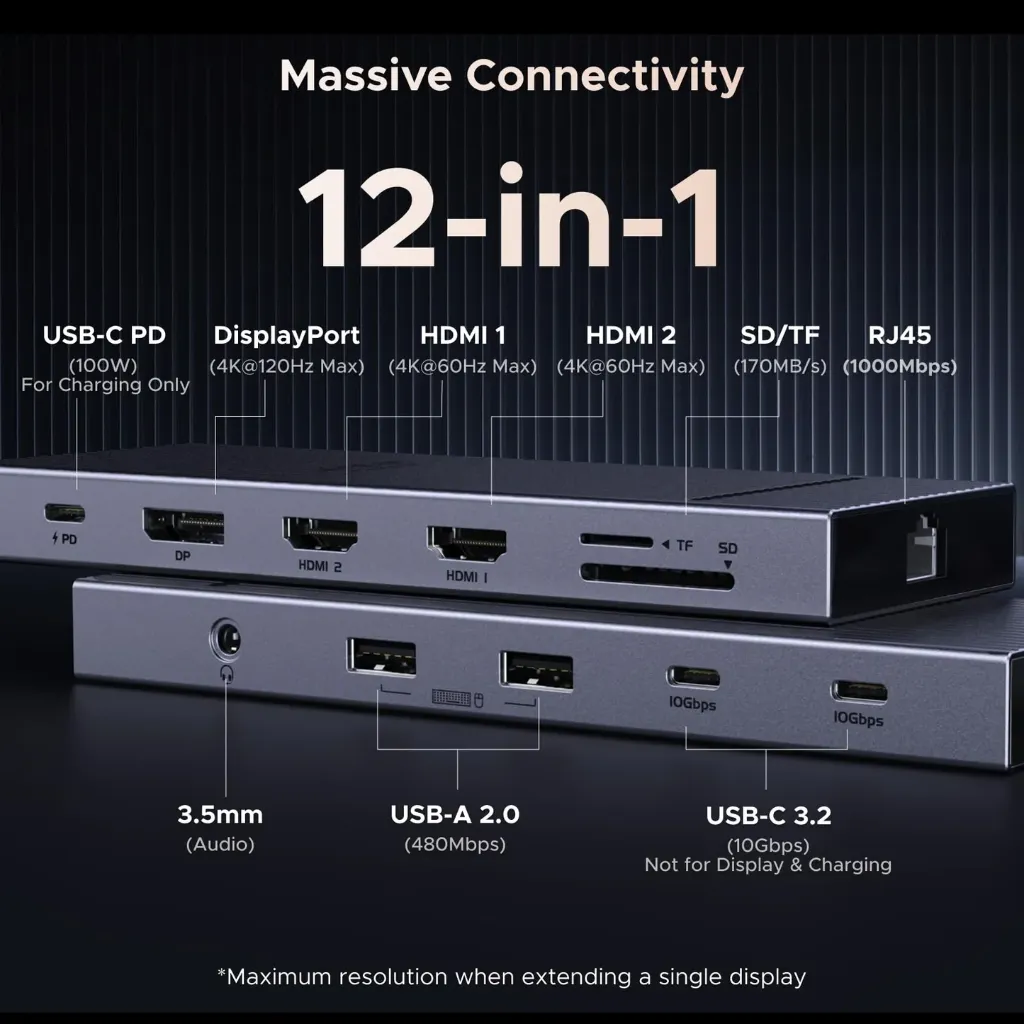

| Video Ports | 2x HDMI Female + 1x DisplayPort (DP) Female |
| Display Resolution | • Single Screen: Up to 4K @ 120Hz / 144Hz (via DP)
• Dual Screens: Up to 4K @ 60Hz
• Triple Screens: Up to 4K @ 30Hz |
| Data USB Ports | • 2x USB-C (10 Gbps SuperSpeed data-only)
• 2x USB-A 2.0 (For peripherals like keyboard/mouse) |
| Power Delivery | Supports up to 100W PD Input (Delivers up to 85W pass-through safety charging to laptop) |
| Network & Media | • 1x RJ45 Gigabit Ethernet (1000 Mbps)
• 1x SD/TF 3.0 Card Slots (Up to 104 MB/s)
• 1x 3.5mm AUX Audio Jack |
| OS Compatibility | • Windows: Supports Extended Mode across 3 independent external displays (A-B-C-D)
• macOS: Supports Mirror Mode only (External displays will show identical content: A-B-B-B) |
| Best Use | A high-tier workstation expansion hub ideal for power users and Windows multi-monitor setups looking to push high refresh rates (120Hz+) on a primary screen alongside robust data connectivity. |
