| Specification | Details |

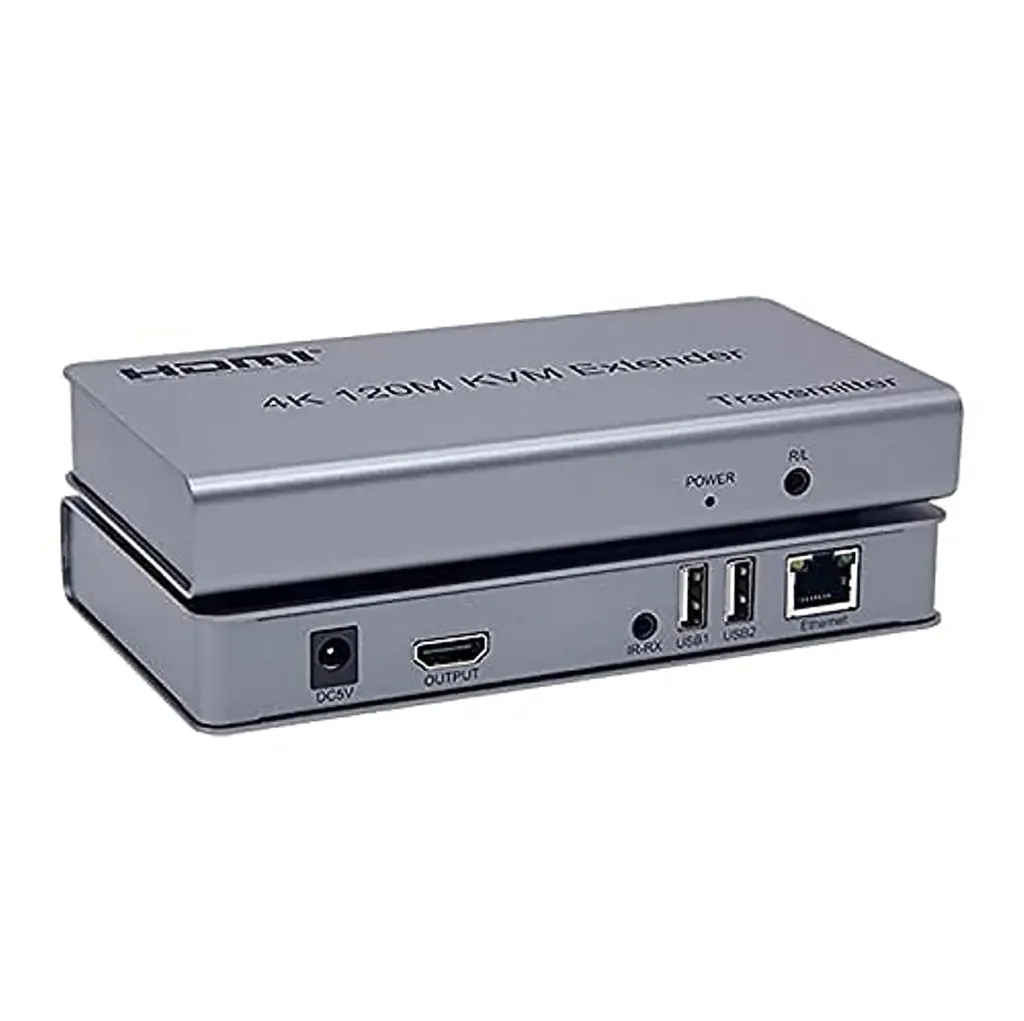

| Model / SKU | 4K 120M HDMI KVM Extender over IP / Cat6 (Transmitter and Receiver Kit) |
| Transmission Range | Up to 120 Meters (394 ft) via Single Cat5e / Cat6 / Cat6A Network Cable (Pure Copper OFC Recommended) |
| Resolution Support | Up to 4K @ 30Hz / 1080p @ 60Hz, 720p, 576p, 480p; HDMI 1.4 and HDCP 1.4 Compliant |
| Control & KVM Features | USB 2.0 Port Extension for Mouse and Keyboard Control, Wide IR Remote Pass-Through (Infrared Control), Local HDMI Loop-out on Transmitter |
| Audio Interface | 3.5mm Left/Right Analog Audio Output Ports on both Transmitter (TX) and Receiver (RX) units |
| Material Construction | Industrial-Grade Extruded Aluminum Alloy Chassis with Integrated Passive Thermal Cooling Fins |
| Power Supply | Dual External Power Adapters (DC 5V / 1A for TX and RX units) • Low Power Consumption (< 3.5W per unit) |
