| Specifications | Details |

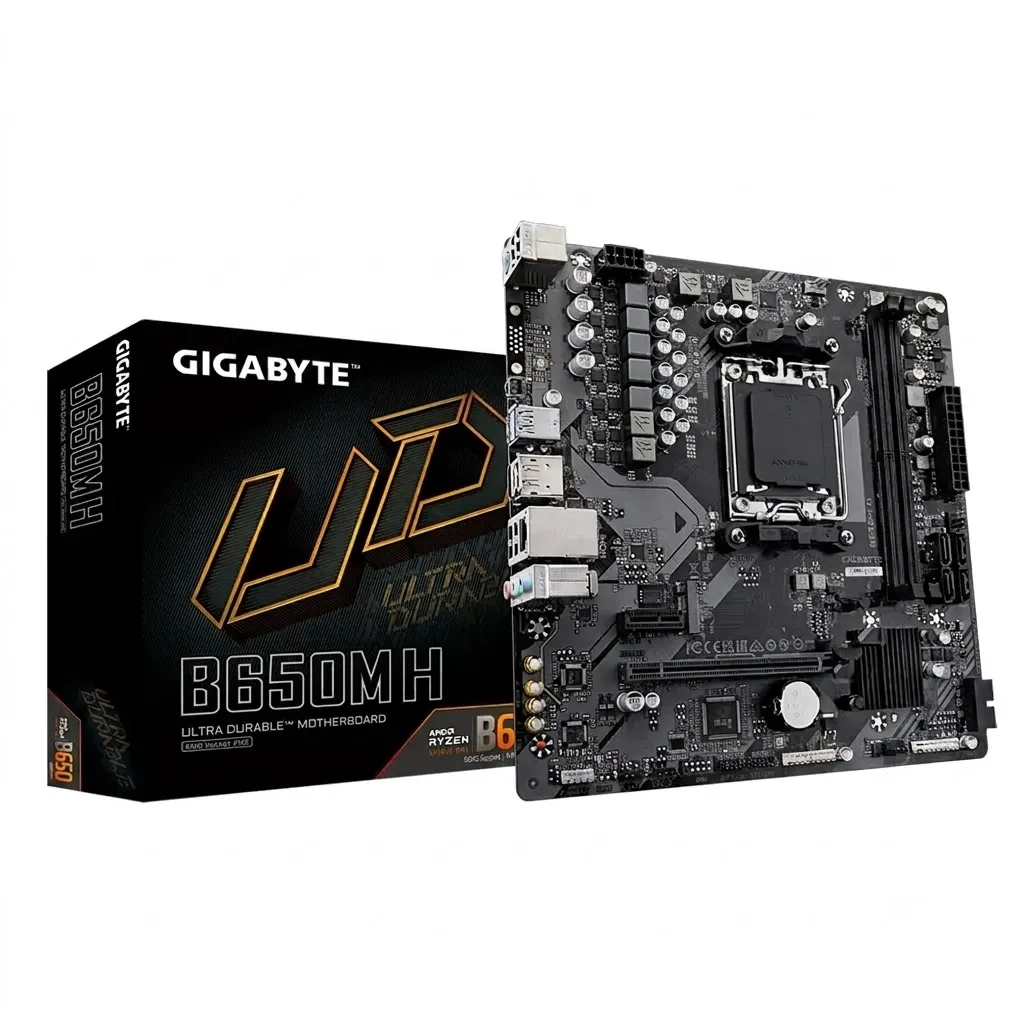

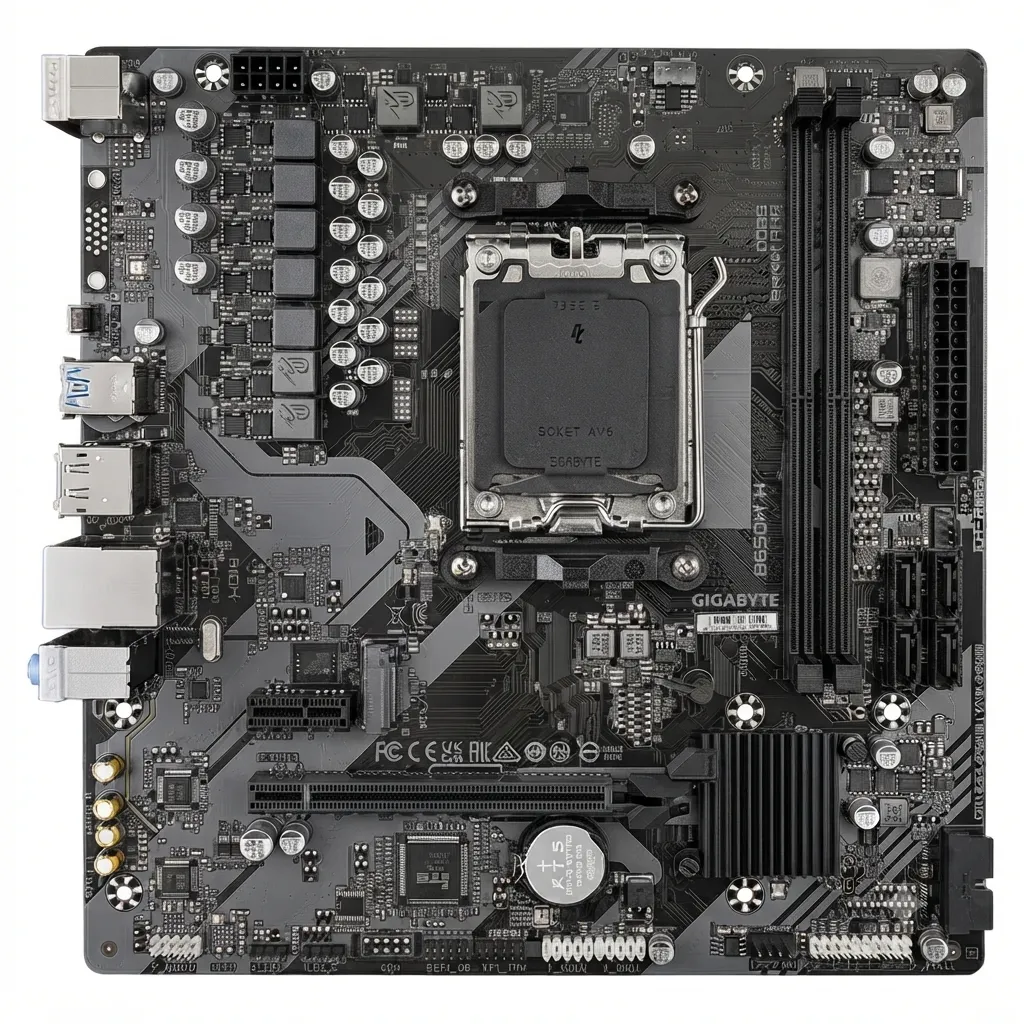

| Model | Gigabyte B650M H (rev. 1.0) |
| CPU Socket | AMD Socket AM5 (Supports Ryzen™ 7000/8000/9000 series) |
| Chipset | AMD B650 |
| Memory | 2 x DDR5 DIMM slots, Max. 96GB (up to 7600+ MHz OC) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Storage | 1 x M.2 slot (PCIe 4.0 x4), 4 x SATA 6Gb/s ports |
| Ethernet | Realtek® Gigabit LAN (1Gbps) |

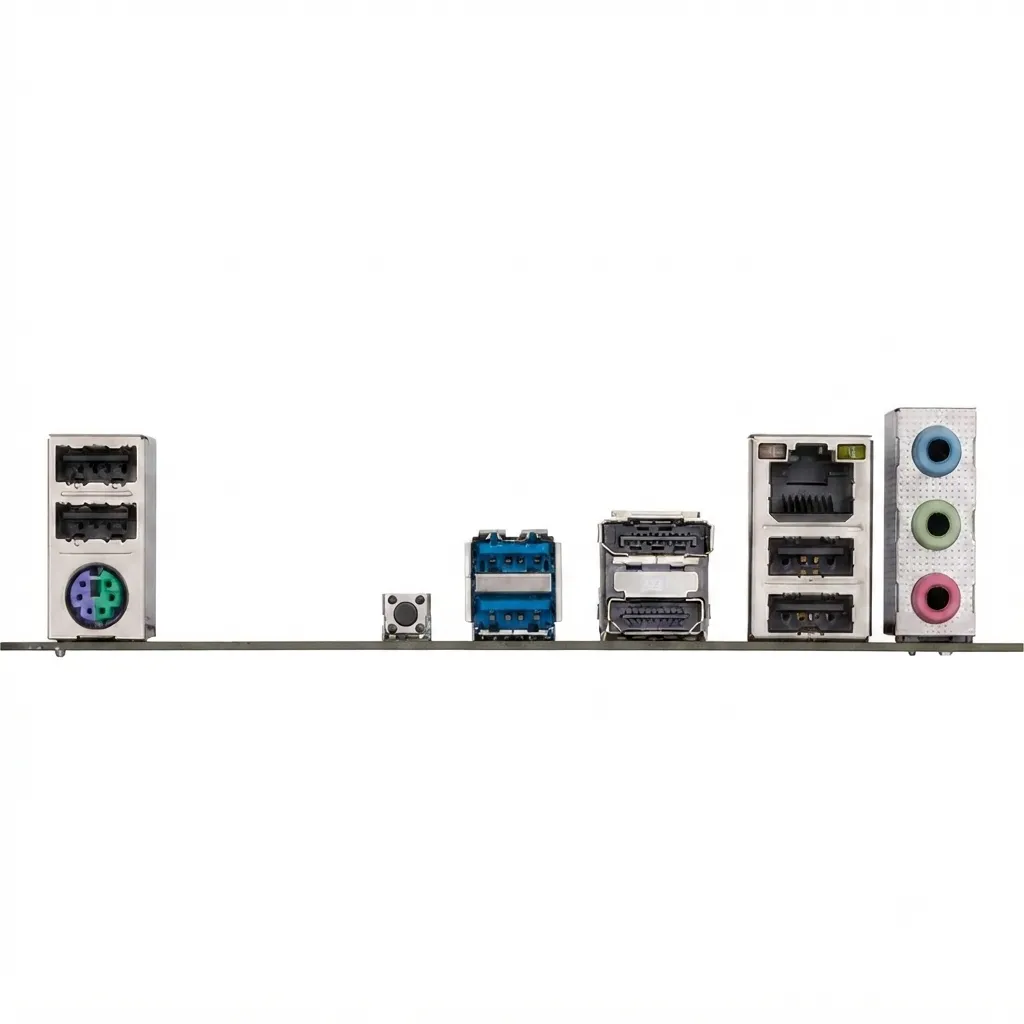

| USB (Rear) | 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0/1.1 ports |
| Video Outputs | 1 x HDMI® port, 1 x DisplayPort |
| Audio | Realtek® Audio CODEC, High Definition Audio |
| Form Factor | Micro-ATX (23.0 cm x 22.5 cm) |
