| Specifications | Details |

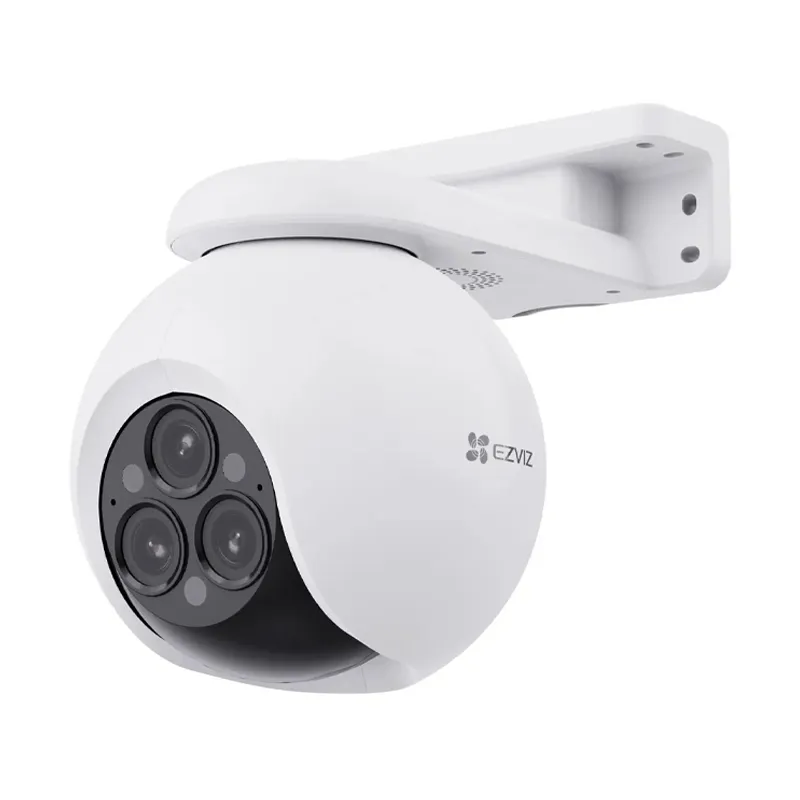

| Model | Ezviz HOME CAMERA H80F 2K 4MP Source |
| Sensors | 1/3” Progressive Scan CMOS × 3 |
| Lenses | - 2.8mm @ F1.6 (54° vertical, 96° horizontal, 110° diagonal)
- 6mm @ F1.6 (28° vertical, 52° horizontal, 60° diagonal)
- 12mm @ F1.6 (14° vertical, 25° horizontal, 29° diagonal) |
| Pan/Tilt Range | Pan: 340° • Tilt: 70° |
| Minimum Illumination | 0.05 Lux @ (F1.6, AGC ON) • 0 Lux with IR |
| Night Vision | Up to 30m / 98ft |
| Max Video Resolution | 2560 × 1440 (2K⁺) |
| Video Compression | H.265 / H.264 |
| Audio | Two‑way talk • Auto‑tracking with zoom |
| Network | Wi‑Fi IEEE802.11b/g/n (2.4GHz) • RJ45 Ethernet port |
| Smart Security | AI person & vehicle detection • Customizable alert zones |
| Storage | microSD card up to 512GB • EZVIZ CloudPlay |
| Weatherproof | IP67 • Operating range: ‑30°C to 50°C |
| Power | DC 12V / 1.5A • Max consumption 18W |
| Dimensions | 168 × 112 × 156 mm |
| Weight | 575.7 g |
