| Specifications | Details |

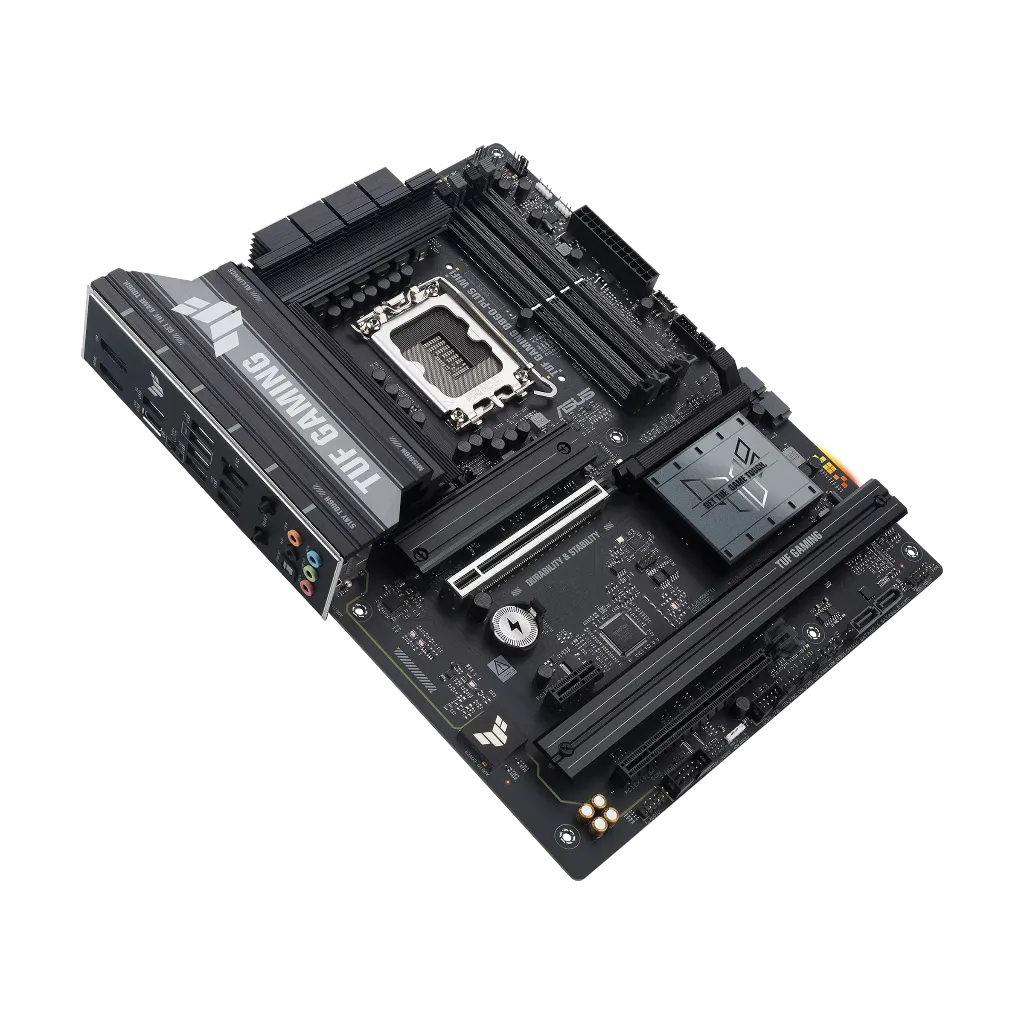

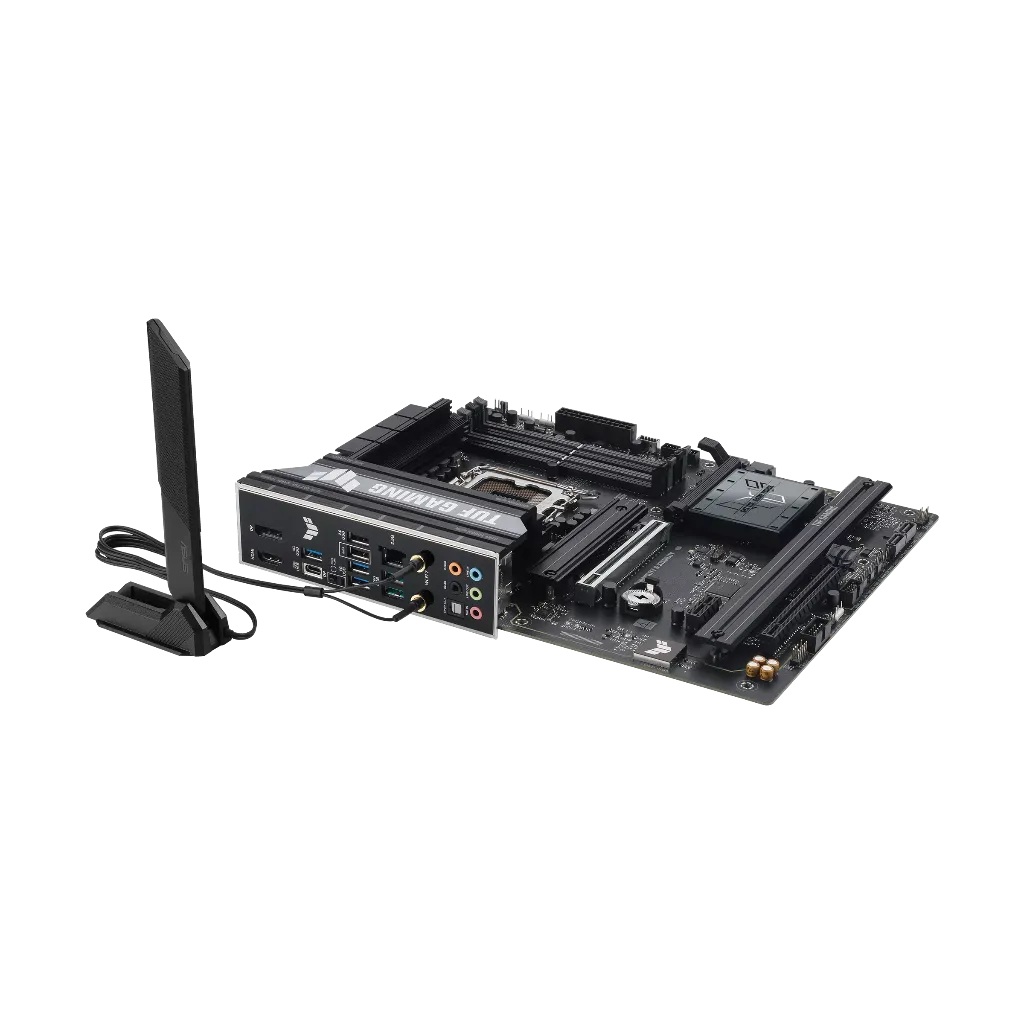

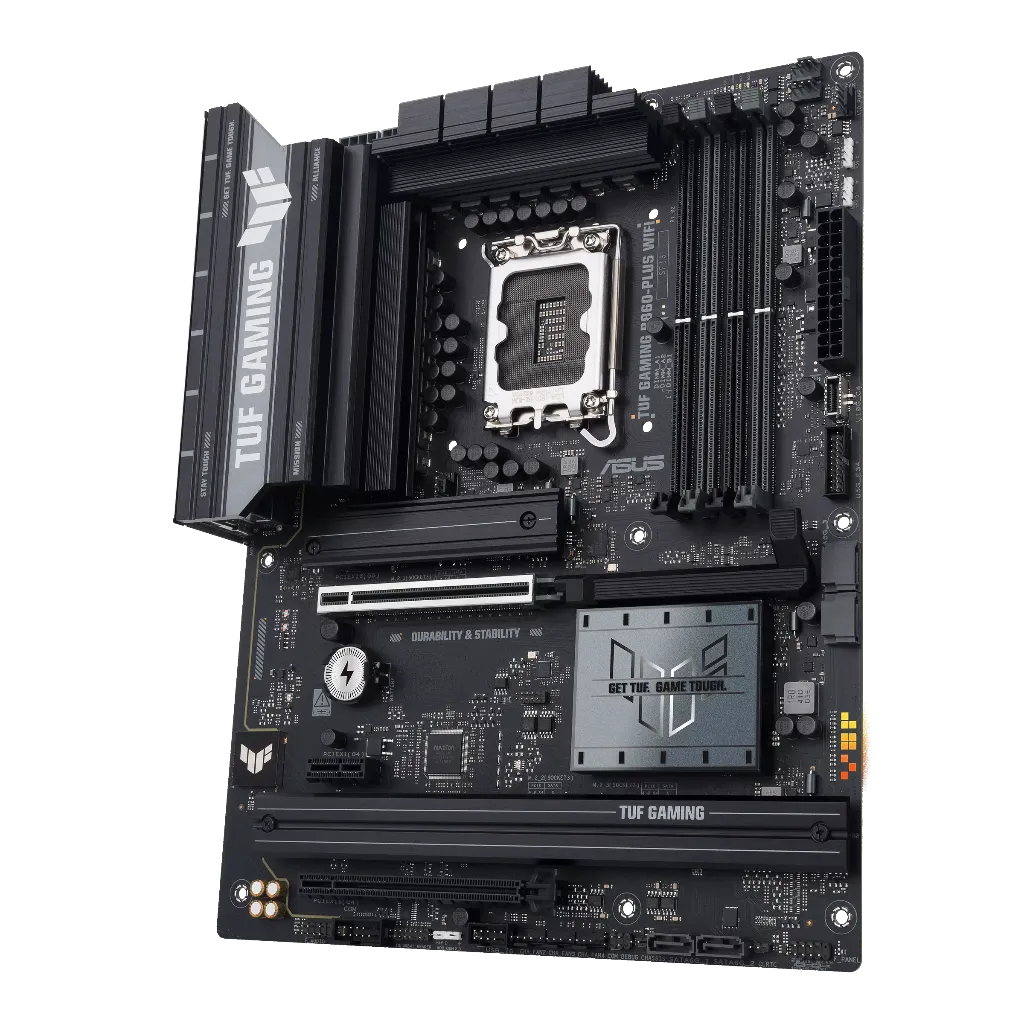

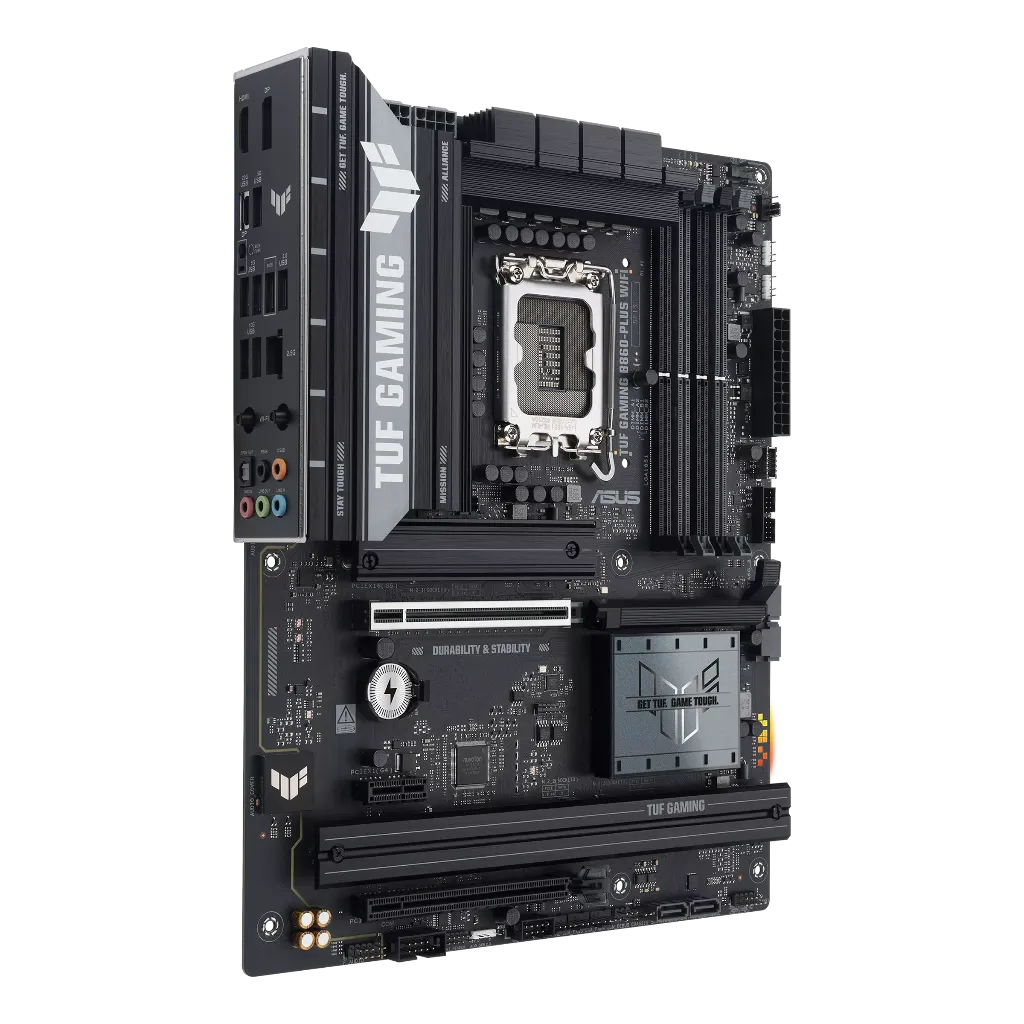

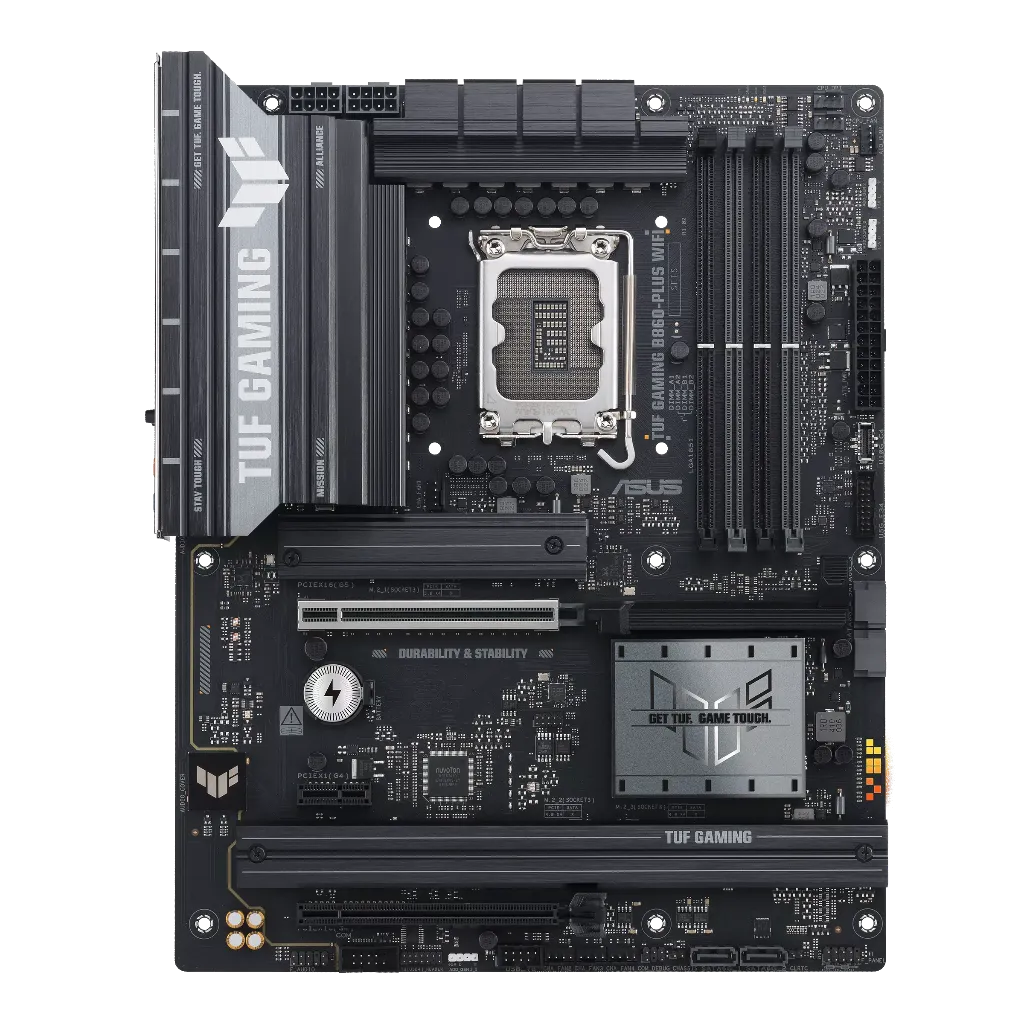

| Model | ASUS TUF GAMING B860-PLUS WIFI |
| CPU Socket | LGA1851 (Supports Intel® Core™ Ultra Processors - Series 2) |
| Chipset | Intel® B860 |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 (up to 8666+ MT/s OC) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
| Storage | 3 x M.2 slots (PCIe 5.0 & 4.0), 4 x SATA 6Gb/s ports |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 7 (802.11be) & Bluetooth® v5.4 |

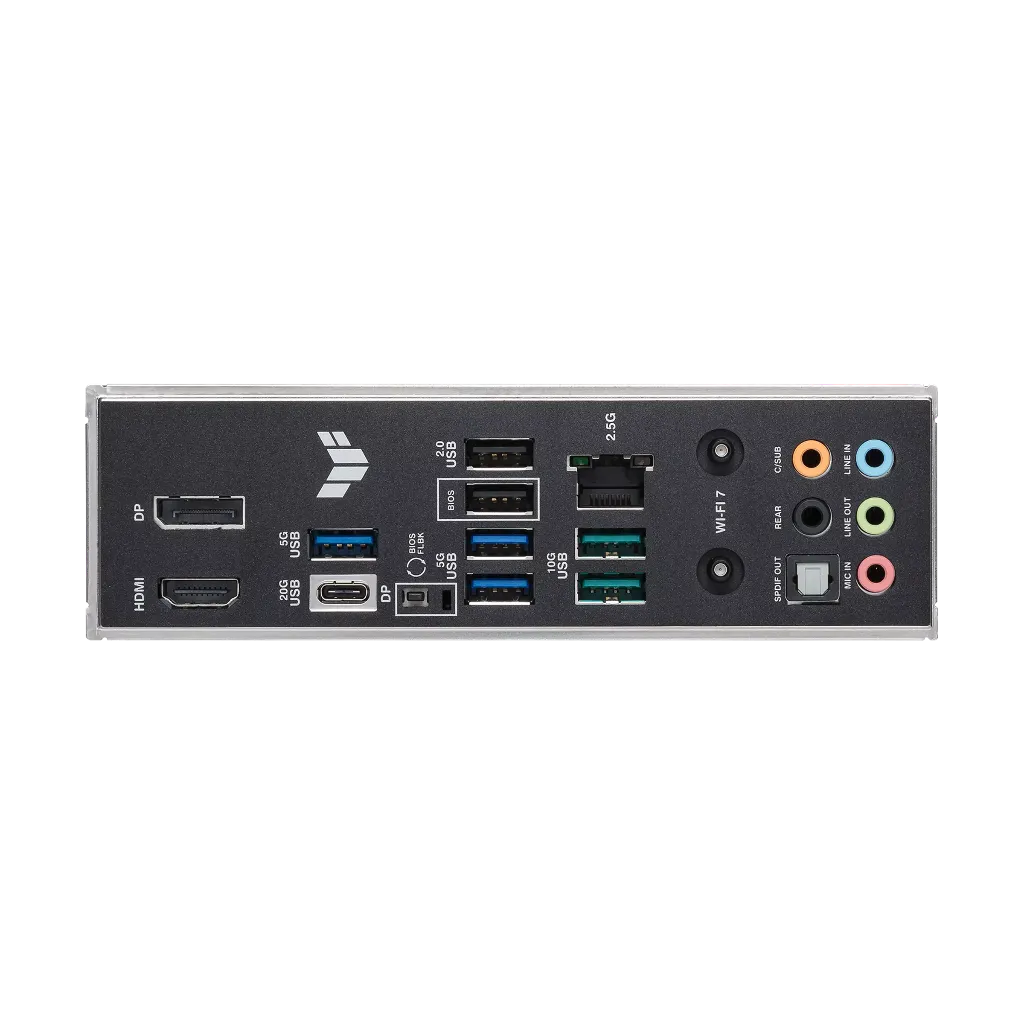

| USB (Rear) | 1 x USB 20Gbps (Type-C), 2 x USB 10Gbps, 3 x USB 5Gbps, 2 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| Form Factor | ATX |
