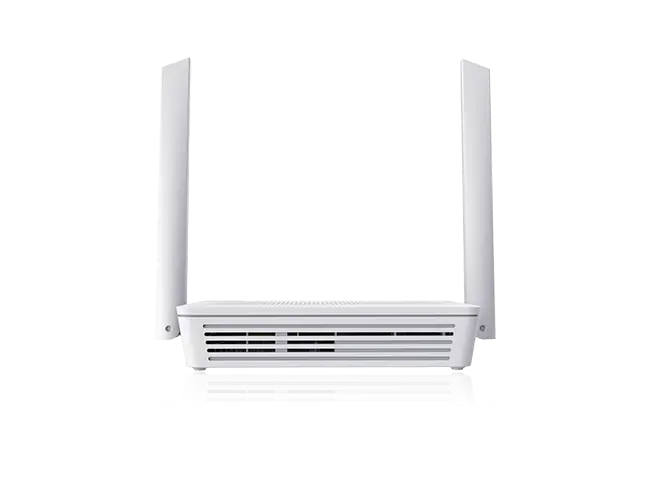

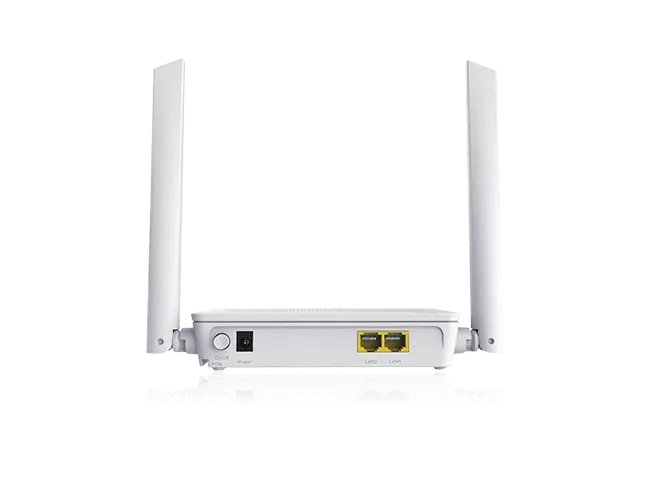

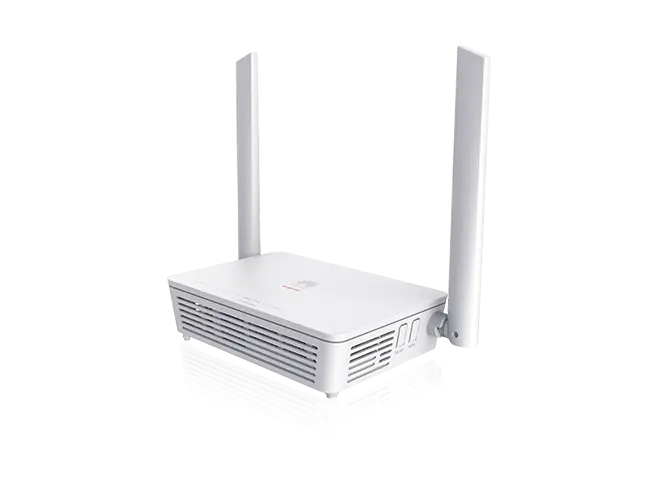

Router Huawei ONT Ekit echolife

Specifications	Details
Model	Huawei EchoLife EG8021V5
Type	GPON routing‑type ONT
Dimensions (H × W × D)	30 × 155 × 105 mm (without antenna/pads)
Weight	~196 g
NNI (Network‑Network Interface)	GPON optical connector SC/APC
UNI (User‑Network Interface)	2 × GE + 2.4GHz/5GHz Wi‑Fi
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	12 V DC, 1 A
Static Power Consumption	4.6 W
Max Power Consumption	11.6 W
Indicators	Power / PON / LOS / LAN1 / LAN2 / WLAN / WPS
Memory	128 MB Flash, 128 MB RAM
GPON Port Specs	Class B+, Rx sensitivity −27 dBm, overload −8 dBm, wavelengths 1310 nm upstream & 1490 nm downstream, FEC support
Ethernet Features	VLAN tagging/removal, QinQ VLAN, MAC learning, auto‑adaptive 10/100/1000 Mbps
Wi‑Fi Standards	IEEE 802.11 b/g/n (2.4GHz), IEEE 802.11 a/n/ac (5GHz)
Wi‑Fi Features	2×2 MIMO (2.4GHz & 5GHz), antenna gain 5 dBi, WMM, multiple SSIDs, WPS, concurrent dual‑band
Air Interface Rate	300 Mbps (2.4GHz), 867 Mbps (5GHz)

This combination does not exist.

Brands: Huawei
